Description
- Purely analog precision Audio Signal Processor, followed by 6 Hypex NCore power amplifiers with tailored performance: 2x100W, 2x125W, 2x250W, all amps are 2Ohms capable!
- Balanced signal XLR input with 2-step rumble filter, RCA adaptor available
- High End precision Audio Signal Processor with shortest feedback loops and dedicated ground returns.
- Mica caps for selected duties
- Well decoupled +/-15V ASP rails, upgrade to ultra lo noise LDOs (on request)
- Tight tolerance 1-2% capacitors , selected for lowest distortion.
- Tight tolerance 0,1% metal film precision audio resistors.

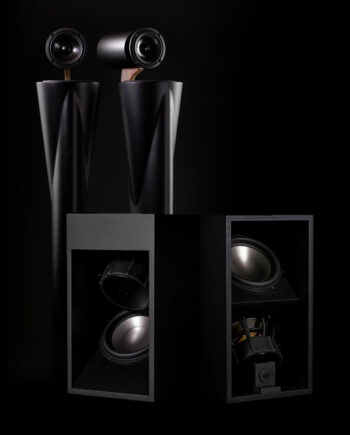

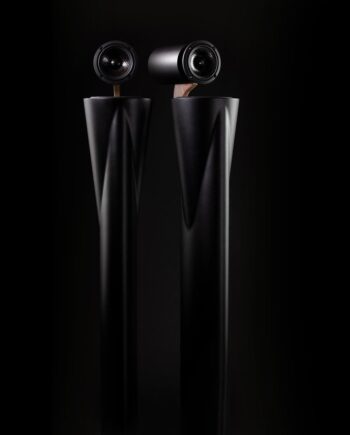

- User may switch between configuration for LXmini®, LXsirius, LXmini®+2, LXsirius+2 or LXstudio. (Jumper at case bottom)
- High performance audio OpAmps, JFET and bipolar.

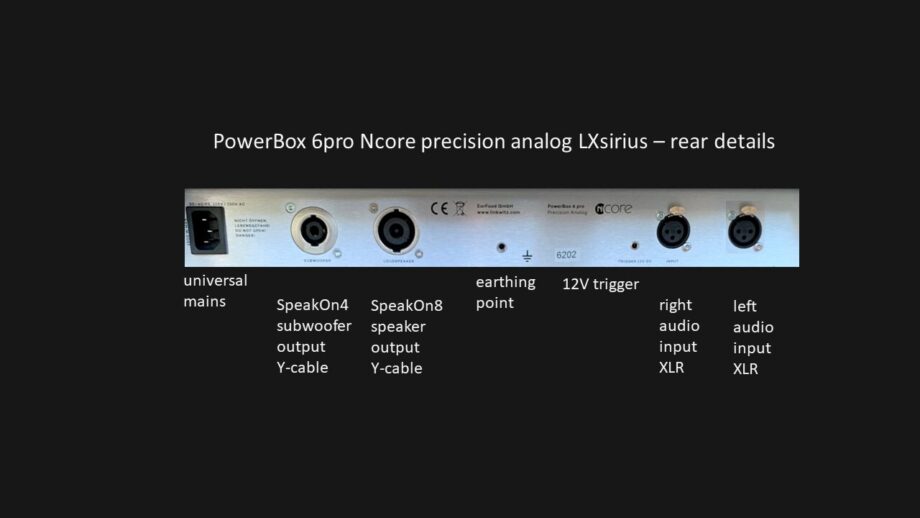

- High current SpeakON output plugs: 2 SpeakONs replace 12“banana” plugs.
- +12dB gain option (Jumper at case bottom)

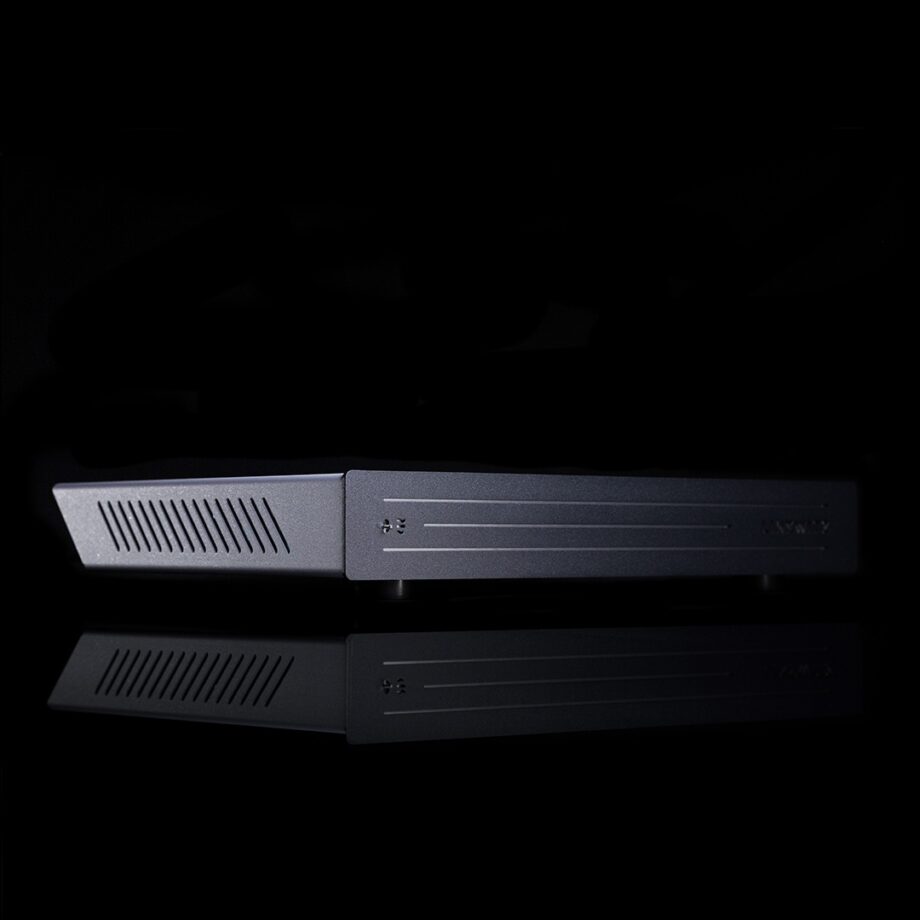

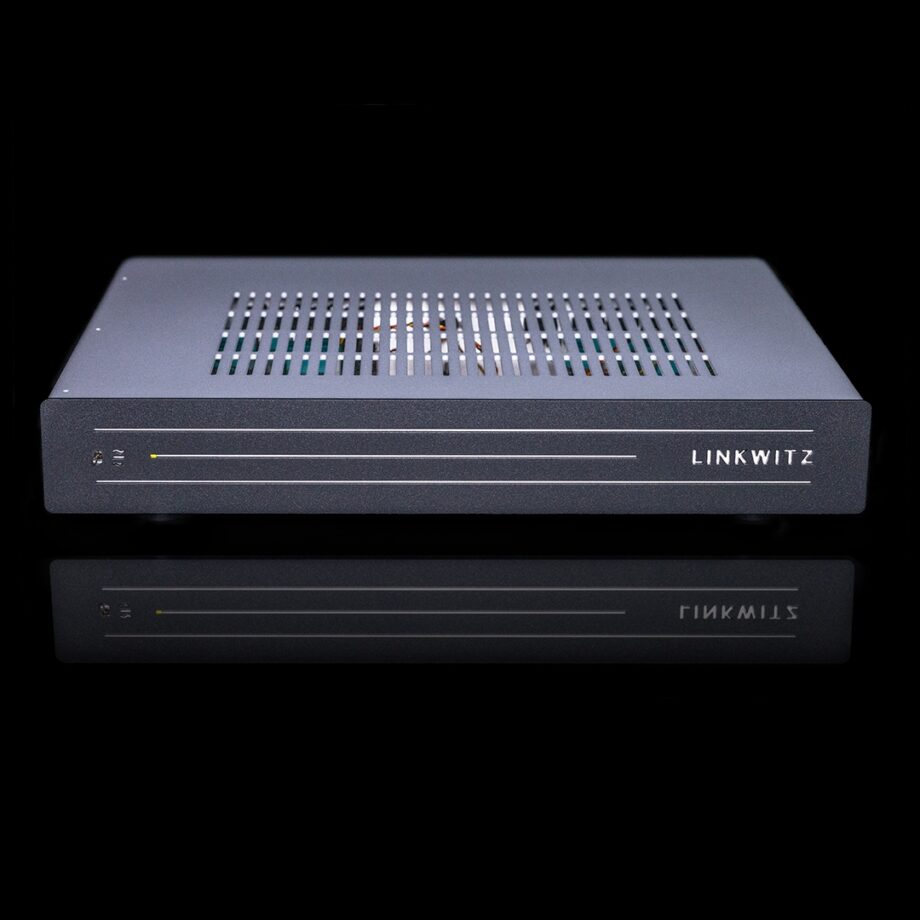

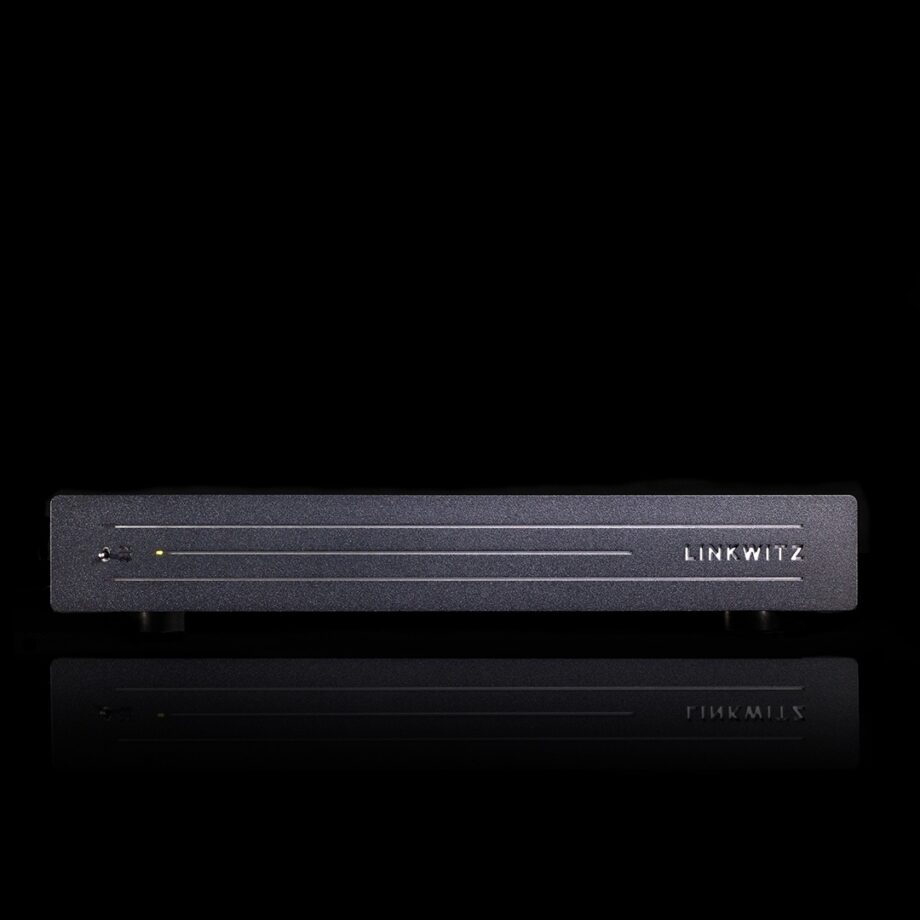

- Slim & quiet fan-less design in a massive 3mm full aluminum case with stainless steel front plate: ca. 44 x 36 x 5,5 cm.
- 12V trigger input.
This is a high power device (more than 1000W) for professional use acc EN 61000-3-2 (Class A). Its connection to the electric network may require approval by the local electricity supplier.
A typical customer voice:
“..I have to admit that the Analog Power Box is a significant step up over the DLCP version. The sharpness and nervousness of the sound disappeared. There is much more culture in music. Also, there are better low registers, better details across mids, spaciousness, and air without harshness. All in all, it is so much more pleasure to listen to.
Improvements make it worth spending!
Thanks, Marcin”
Marcin S. (Poland), running a LXmini+2 system
