Sommer Elephant 825

11,49 /meter

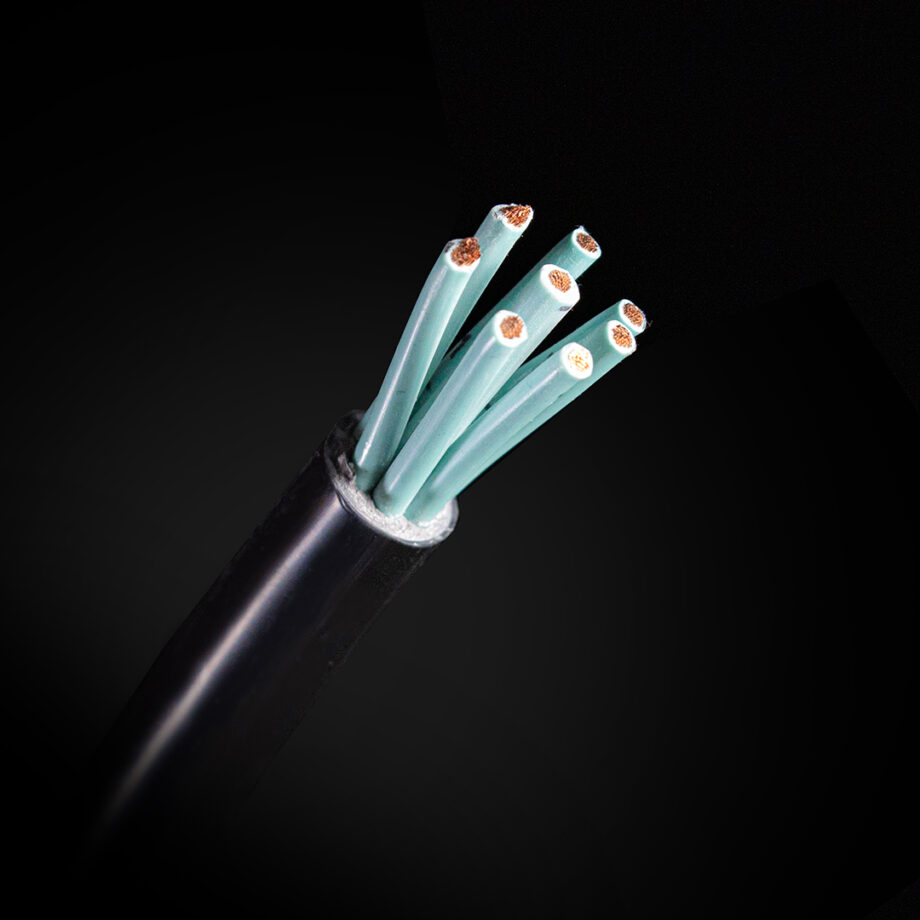

8×2.5mm² multicore stage cable, available per meter for DIY.

  • Loss-free transmission due to the special litz stranding technology
  • Highly flexible and stage-proof, easy to reel
  • Compatible with the common Neutrik Speakon connectors
  • Easy to use due to well-insulated, numbered wires
SKU: Cable 8x2,5 Categories: , ,


Description

Application

  • Professional PA systems
  • Surround and woofer systems
  • For permanent installation

Technical Data

  • Properties: Analog
  • Properties: OFC oxygen free copper
  • Application area: ELA 100 V
  • Application area: Studio / Broadcast
  • Application area: Stage / live
  • Application area: Mobile outdoor / indoor
  • Application area: Installation
  • Application: Speaker Cable
  • Colour: black
  • Colour detailed: black
  • Jacket material: PVC
  • Jacket Ø: 15,3 mm
  • Number of Channels (audio): 1
  • Inner conductor (audio): 8
  • Inner conductor (audio): 2,5 mm²
  • Inner conductor Ø (audio): 1,78 mm
  • AWG (audio): 13
  • Copper strands (audio): 78
  • Copper strand Ø (audio): 0,20 mm
  • Conductor insulation Ø: 3,25 mm
  • Weight per 1 m: 354 g
  • UV-resistant: yes
  • Fire load per m: 1,9 kWh
  • Style variant: round
  • Packing: bulk stock
  • Temperature min.: -25 °C
  • Temperature max.: 70 °C
  • Width: 15,3 mm
  • Height: 15,3 mm
  • Insulation resist. per 1 km: 0,005 GΩ
  • Insulation resist. per 1 km (audio): 0,005 GΩ
  • Conductor resistance per 1 km: 7,6 Ω

Additional information

Weight 0,5 kg
length

1 m, 10 m, 2 m, 3 m, 4 m, 5 m, 6 m, 7 m, 8 m, 9 m
